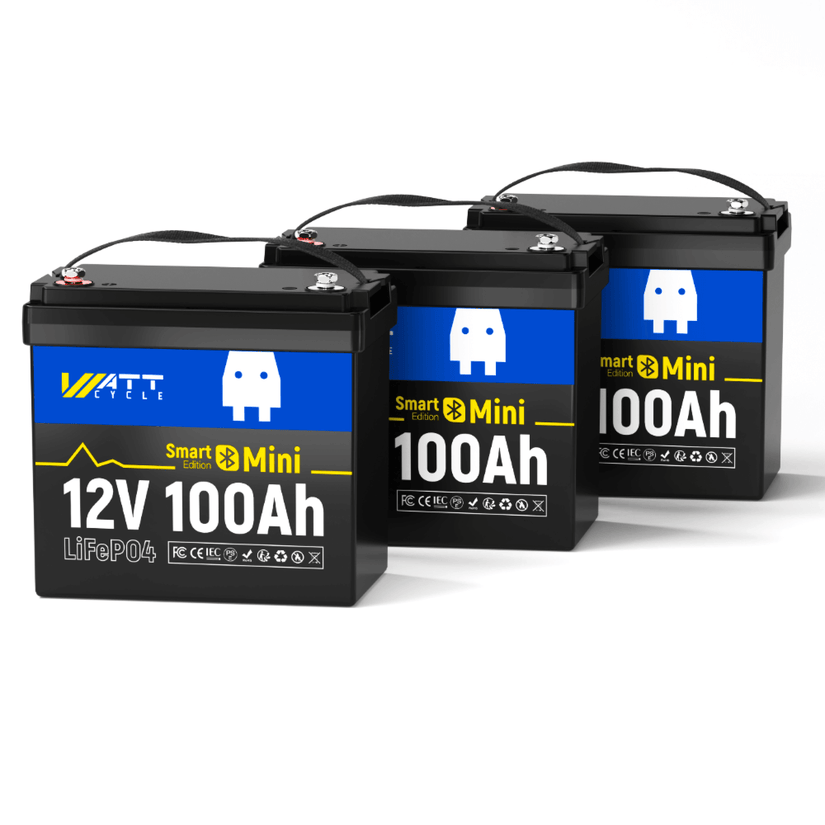

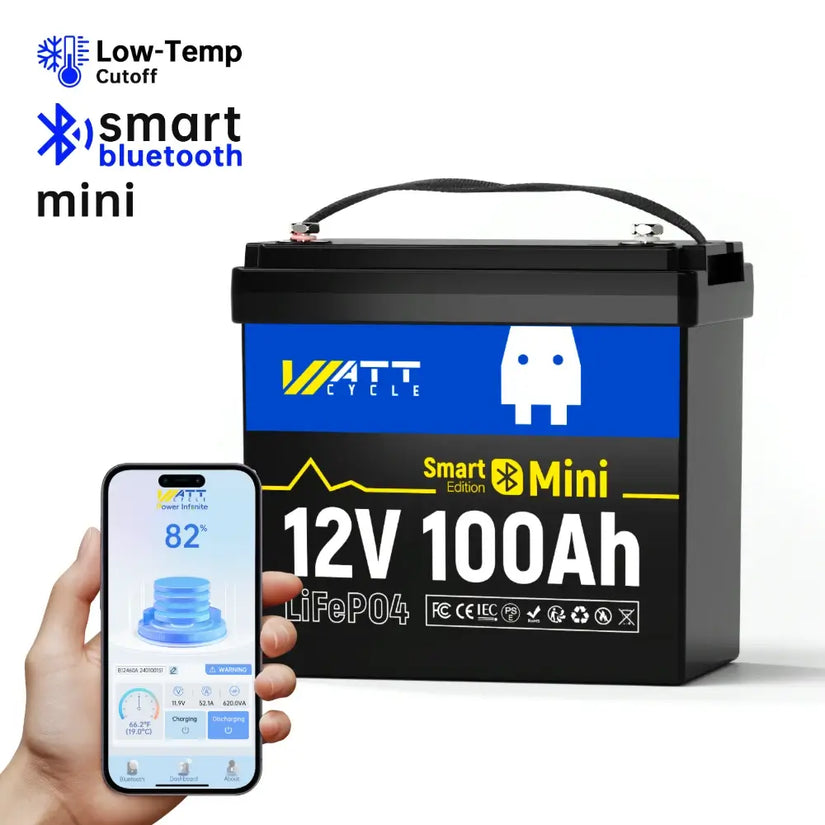

WattCycle 12V 100Ah Mini Bluetooth LiFePO4 Lithium Battery | ECE R10 Certified
- Core Value：The WattCycle 12V 100Ah Mini LiFePO4 battery delivers 1280Wh of reliable energy in a compact, lightweight design, ideal for campervans, caravans, marine use, and off-grid power systems in the UK.
- Key Benefits：Built with EV-grade cells and a smart 100A BMS, it provides stable power with full protection against overcharge, over-discharge, short circuit, and temperature issues.IP65-rated protection ensures durability in outdoor environments, while low-temperature cut-off makes it suitable for cold UK conditions.Bluetooth monitoring allows real-time battery status tracking via the WattCycle App on iOS and Android.
- Proof & Specs：CE / RoHS / FCC / UN38.3 certified for safety and reliability. 12V 100Ah capacity | Expandable up to 4S4P for larger energy systems.
Local UK warehouse, more details in
Shipping Policy
Our batteries come with a 5-year warranty, which can be extended to 7 years total upon product registration. Accessories are covered by a 1-year warranty, and like-new (refurbished) batteries include a 1-year warranty.
For full terms, conditions, and claim details, please visit:
Warranty Policy
-
Fast, Free Shipping
-
Buy now, pay later
-
Hassle-Free Warranty
-
Lifetime Customer Support
Top Budget 12V LFP Battery Tournament! Which One Will Win?!
If you need larger 12V batteries you can rely on, check out my current recommendations here
Highlights: WattCycle 12V 100Ah Mini Battery Review
Check out the highlights from our influencer's review of the WattCycle 12V 100Ah Mini Battery! Discover the key features, performance insights, and why this compact powerhouse is perfect for your needs. Don't miss out on expert tips and real-world applications. Subscribe for more updates!

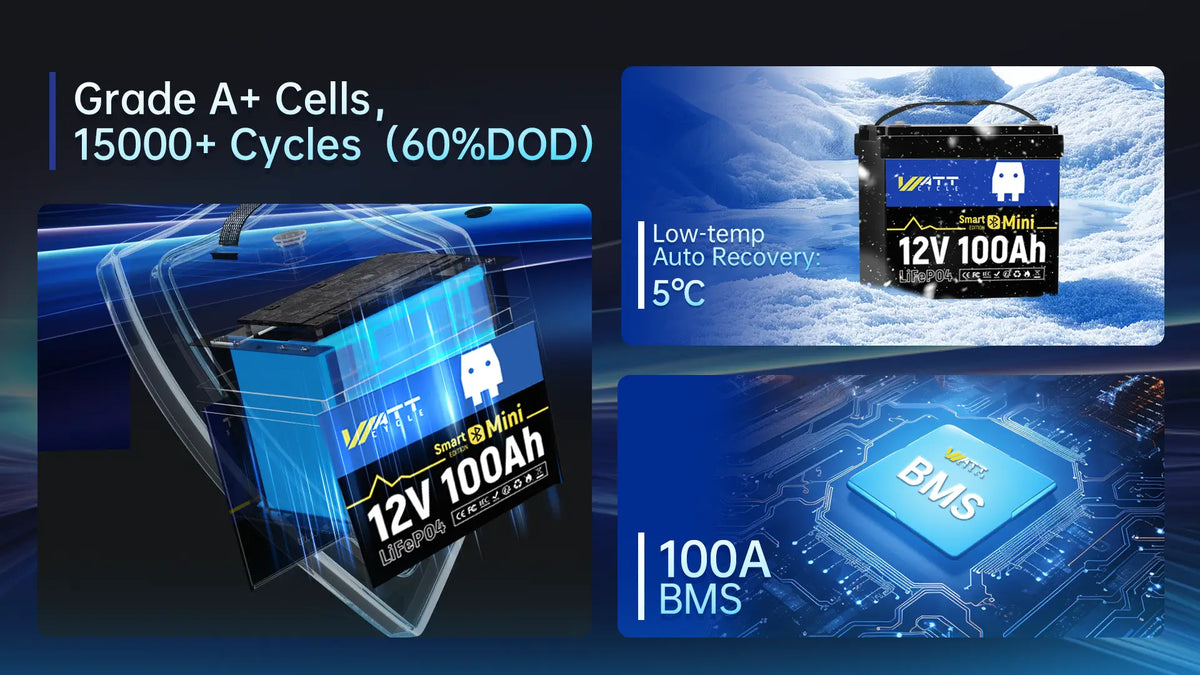

Small Footprint. Full Protection.
Featuring EV Grade A+ cells and 100A BMS protection, designed for safe, compact, and reliable power storage.

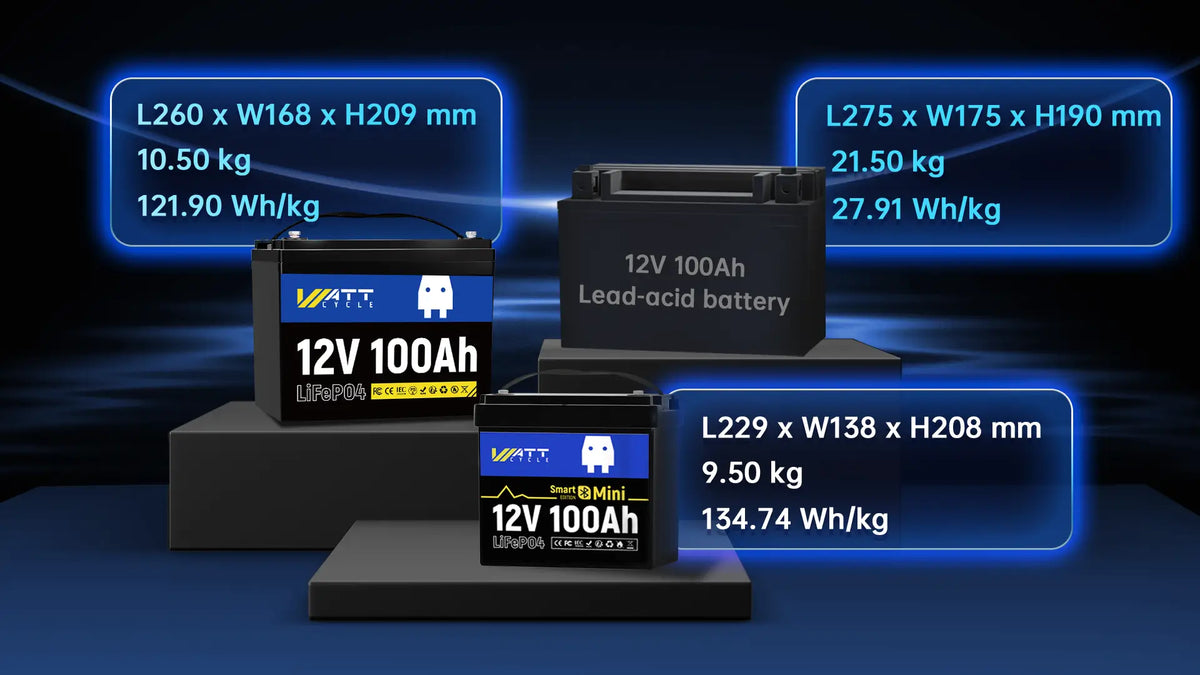

Compact Design. More Usable Energy.

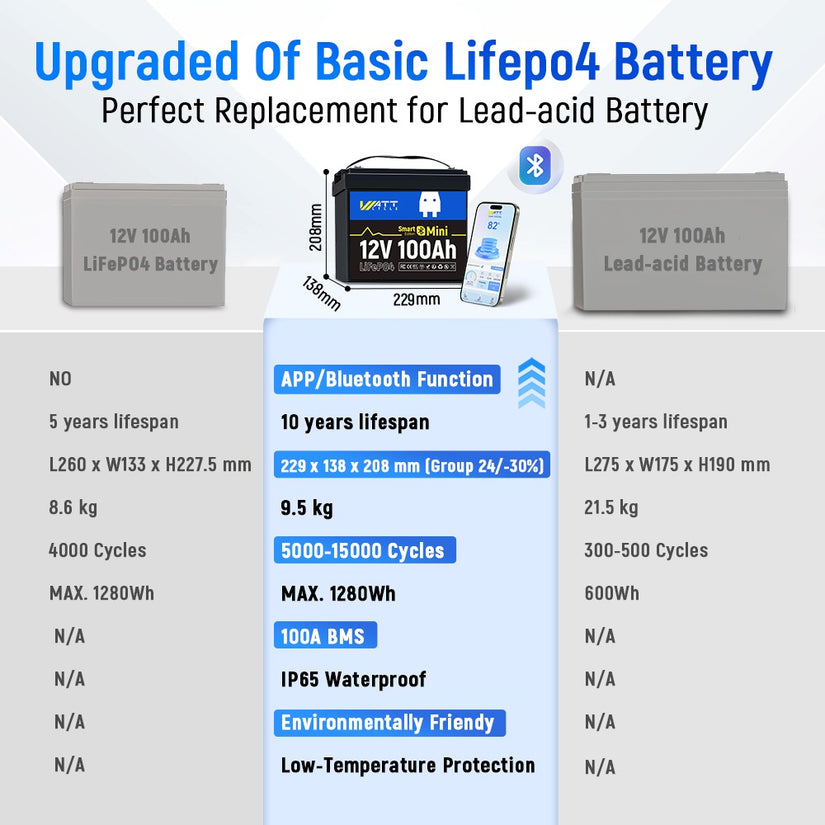

Compared with lead-acid batteries:
49% smaller | 65% lighter | Up to 70% higher energy density
Compared with the standard WattCycle 12V 100Ah:
32% smaller | 10% lighter | 10% higher energy density
Monitor Your Battery from Your Phone
Built-in Bluetooth gives you real-time access to battery performance and remaining charge, helping simplify monitoring for solar, caravan, and off-grid systems.

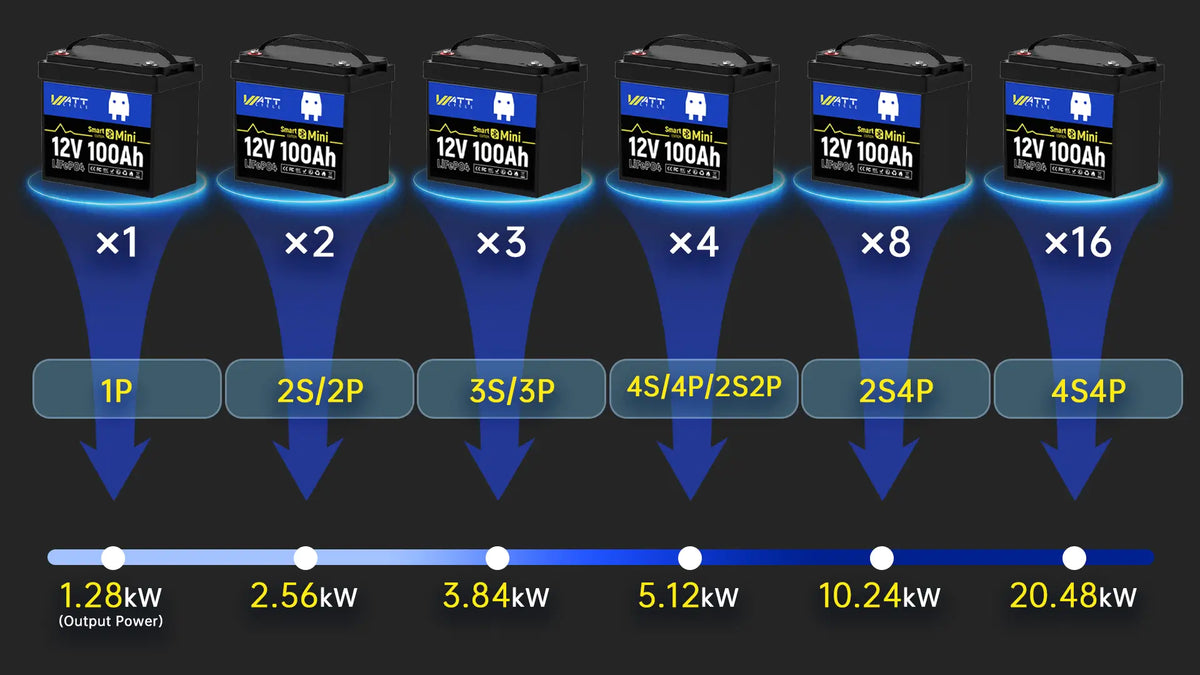

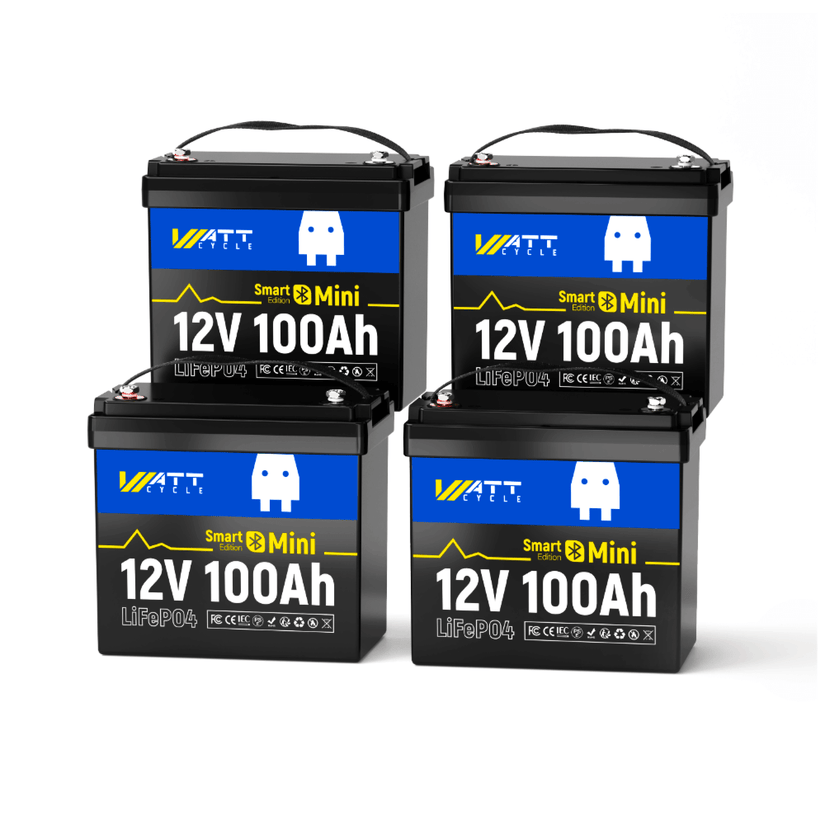

Expandable Energy Storage
Scale up to 4S4P configurations with up to 20.48kWh capacity, designed to adapt as energy demands increase.
Tech Specs
Electrical Performance
| Technology | LiFePO4 Technology |
| Nominal Voltage | 12.8V |
| Standard Charging Voltage | 14.6V ± 0.2V |
| Nominal / Usable Capacity | 100Ah |
| Energy | 1280Wh |
| Max. Continuous Output Power | 1280W |
Battery Structure
| Battery Dimensions | L229 × W138 × H208 mm |
| Weight | 9.50 kg |
| Waterproof Rating | IP65 |
| Casing Material | ABS (Flame-Retardant Plastic) + PC / UL 94 V-0 |

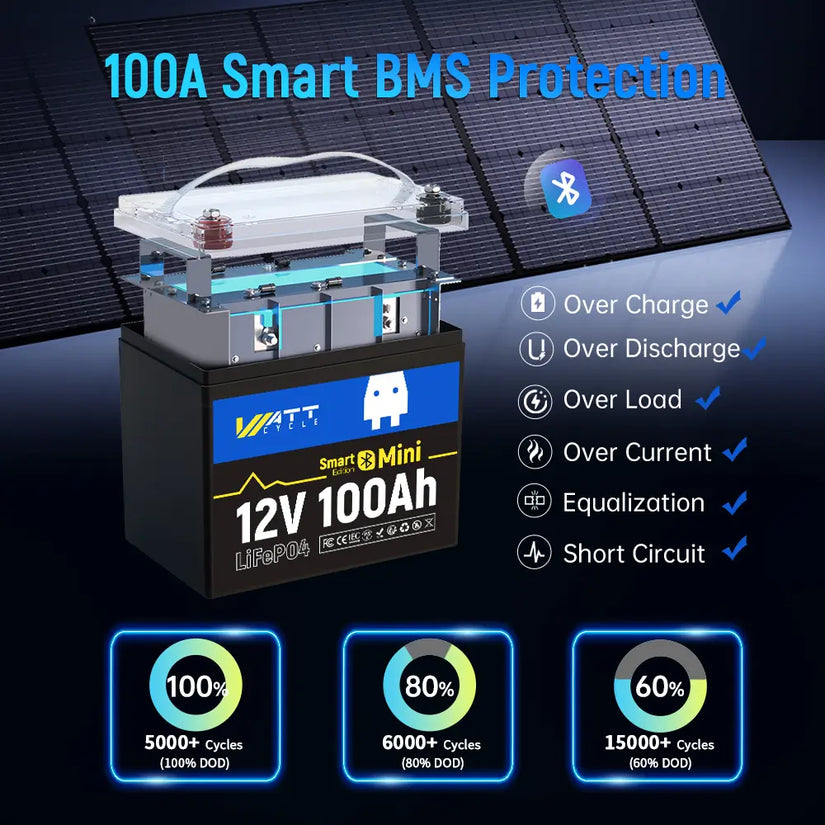

Battery Management System (BMS)
| BMS | 100A |
| Standard Continuous Charge Current | 20A (0.2C) |
| Max. Continuous Charge/Discharge Current | 100A (1C) |
| Over-current Charge Protection | 110A ± 10A |
| Over-current Discharge Protection | 150A ± 50A |
| Short Circuit Protection | Yes |
| Release Condition | Cut-Off Load |
| Cell Balancing | Yes, passive balancing |
Temperature & Protection
| Overheat Protection (Charging) | 60℃ – 70℃ |
| Overheat Protection (Discharging) | 65℃ – 75℃ |
| Overheat Protection Release Condition | Drops to 5℃ – 15℃ |
| Low-Temperature Protection (Charging) | -5℃ – 5℃ |
| Low-Temperature Protection (Discharging) | -25℃ – -15℃ |
| Low-Temperature Protection Release Condition | Rises to 5℃ – 15℃ |
| Charging Temperature | 0℃ – 65℃ |
| Discharging Temperature | -20℃ – 70℃ |
| Storage Temperature | 0℃ – 60℃ |
General Information
| Warranty | 5＋2 Years |
| Series & Parallel Configurations | Max. 4 in Parallel, Max. 4 in Series |
| Certification | IEC, CE-EMC, CE-RoHS, CE-Battery, FCC-SDOC, PSE, METI, RCM, UN38.3, MSDS |
FAQ
Yes. Our 200A BMS protects against charging or discharging in unsafe temperatures.
- Charge cutoff: 0 °C – 45 °C
- Discharge cutoff: –20 °C – 60 °C
Battery runtime is influenced by multiple factors, including battery capacity, connected load, and the battery’s condition. For example, a new battery performs better than a used one, as its capacity slightly decreases with repeated charge cycles. However, you can estimate runtime using a simple formula based on power consumption and battery capacity:
Runtime (hours) = Battery Capacity (Wh) / Total Device Power Consumption (W)Example:
If you have a 12V 100Ah Mini Bluetooth battery and connect a 50W lamp and a 50W speaker, the runtime will be:
1280Wh / (50W + 50W) =12.8 hoursThis straightforward formula helps estimate runtime under different loads. Always consider real-world factors like temperature and battery aging for more accurate predictions.

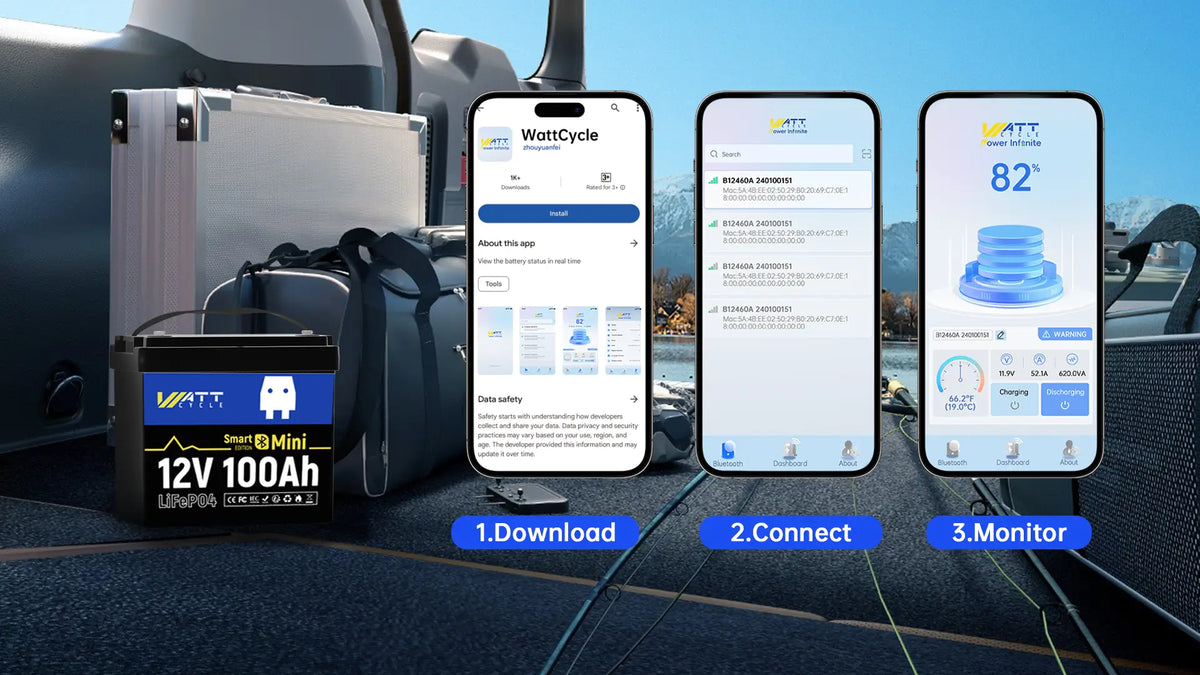

You can search for WattCycle on Google Play or Apple Store,and you will find the app named WattCycle.
After you connect the battery, you can see the state of charge (SOC), temperature, voltage & current, control battery charging and discharging, and warnings on the data center interface. In the advanced settings, you can set the maximum charge and discharge current and temperature.
Size Comparison:
- 12V 100Ah Standard Battery Dimensions: L260 × W168 × H209mm
- 12V 100Ah Mini Battery & 12V 100Ah Mini Bluetooth Battery Dimensions: L229 × W138 × H208mm
Functional Differences:
- 12V 100Ah Standard Battery & 12V 100Ah Mini Battery:
Low-Temperature Protection: Automatically stops discharging when temperatures drop below -20°C to prevent damage.
No Bluetooth Connectivity. - 12V 100Ah Mini Bluetooth Battery:
Low-Temperature Protection: Same as above.
Bluetooth Monitoring: Allows real-time tracking of battery status (e.g., voltage, charge level, temperature) via a smartphone app.
No worries! All WattCycle LiFePO4 batteries feature built-in low-temperature protection, allowing safe discharge even at temperatures as low as-20°C. This means that devices that are operated in freezing temperatures can continue to be reliably supplied with power.

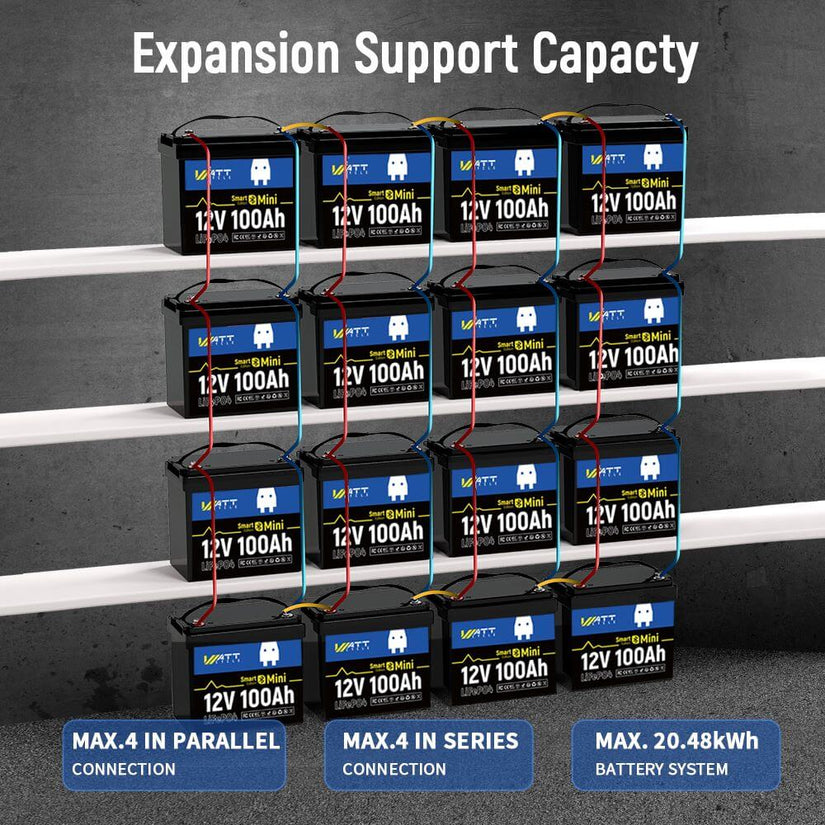

20.48kWh!You can connect 16 WattCycle 12V 100Ah Mini deep cycle batteries in a 4S4P configuration (4 in series, 4 in parallel) to create a48V 400Ah battery system. This system can continuously discharge400Aand deliver20.48kWh of energy, making it ideal for home energy storage or high-demand off-grid applications.
The 12V 100Ah MINI Bluetooth LiFePO4 Battery, equipped with an integrated Bluetooth module, enables convenient monitoring of the battery status using your smartphone through the App.
This application is independently developed and designed by Shenzhen Wattcycle Power Co., Ltd. lt specializes in monitoring lithium batteries, providing real-time status readings such as the voltage of each battery series charging and discharging current, alarm prompts, protection status, etc. This allows users to clearly understand the health status of lithium batteries and ensure their safe use.
You can download the app by scanning the QR code in the user manual.
Yes, it does. It is recommended to charge it between 32℉ (0℃) and 122℉ (50℃ ).
Expand your power options! You can connect up to four (4) WattCycle 12V 100Ah lithium batteries in series or parallel configurations (denoted as 4S or 4P). This allows you to increase the voltage (series) or capacity (parallel) of your battery system to meet your specific needs.
For safe and optimal performance, please follow these connection guidelines:
1) Brand:Only connect WattCycle brand batteries (ensure compatibility).
2) Type: All batteries must be lithium type.
Voltage: All batteries must have the same voltage (12V in this case).
3) Capacity: All batteries must have the same capacity (100Ah).
4) BMS: Ensure all batteries have the same Battery Management System (BMS).
5) Purchase Date:Ideally, connect batteries purchased within 3-6 months of each other (for similar performance characteristics).
Not following these guidelines could damage your batteries.
We recommend consulting a qualified professional for assistance with battery connection.
20.80kWh.
With 4S4P, this allows you to quadruple the voltage (series) and capacity (parallel) of your battery system for maximum output energy.
Then the maximum output energy you get is equal to 20.80kWh. (12.8V*4*100Ah*4=20.80kWh)
